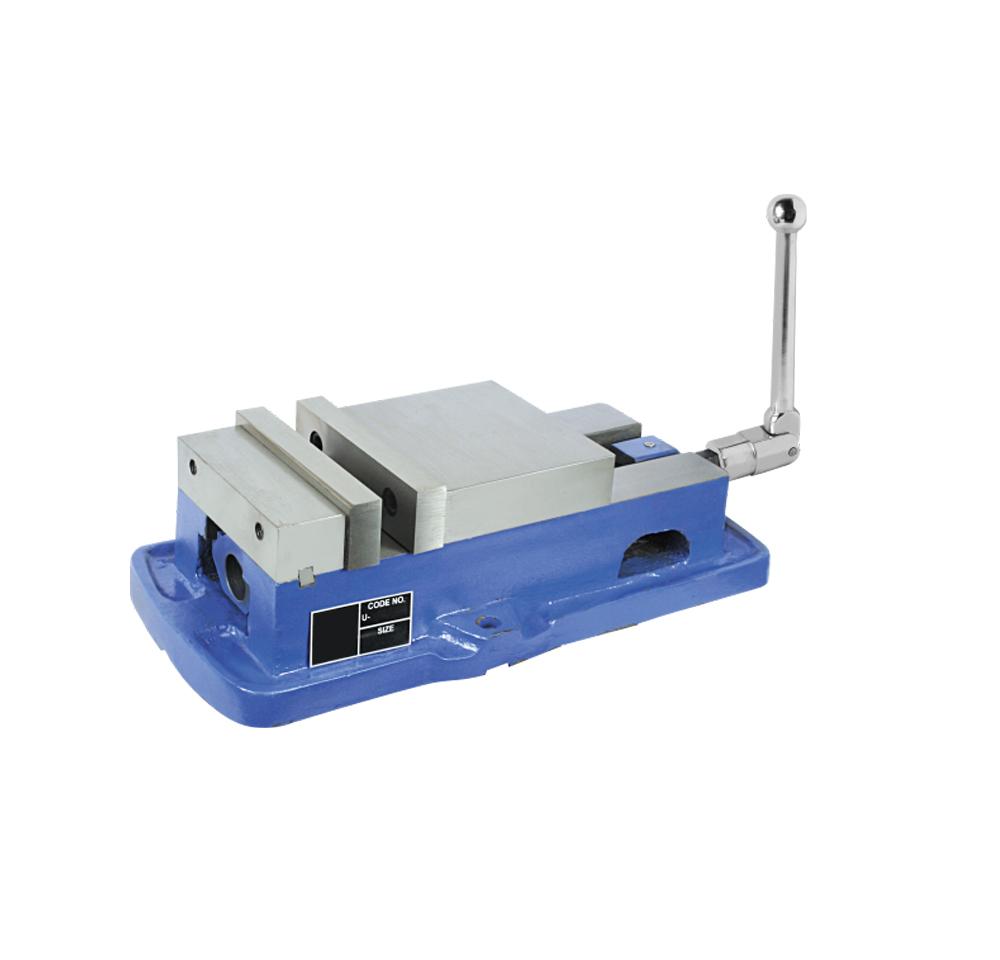

Tilt Lock Machine Vice , Kurt Type – Fixed Base
| Sizes in Inches | 4 | 5 | 6 | 6 | 8 | 8 | |
| Opening 200mm | Opening 200mm | ||||||
| A | Width of jaws in mm | 100 | 125 | 150 | 150 | 200 | 200 |
| B | Opening of jaws in mm | 100 | 120 | 150 | 200 | 200 | 250 |
| C | Depth of jaws in mm | 40 | 40 | 45 | 45 | 60 | 60 |
| E | Width Base in mm | 175 | 205 | 220 | 220 | 310 | 310 |
| G | Height Fixed Base in mm | 100 | 100 | 125 | 125 | 160 | 160 |
| H | Length overall in mm | 345 | 375 | 460 | 460 | 595 | 595 |
| Tenon slot size in mm | 16 | 16 | 20 | 20 | 20 | 20 | |
| Weight (Approx) in kgs. | 16 | 21 | 35 | 35 | 74 | 74 | |
| 2 | Opening | 150 | 170 | 215 | 265 | 300 | 350 |
| 3 | Opening | 230 | 250 | 310 | 360 | 400 | 450 |
| 4 | Opening | 270 | 295 | 370 | 420 | 490 | 540 |
- Rigid Material Vise Body of Ductile Iron.
- Fitted with Thrust Bearing for Smooth Movement.
- Tilt Lock Vices can with stand heavy jobs.
- Top & Bottom of vice bed, bottom & both sides of jaws & all jaw mounting surfaces are precision ground.
- By reversing the jaw plates the jaws are raised & can be fitted to both ends of the fixed jaws & the moveable jaws.
- The four different positions of jaw plates pair are available for more gripping area.
- Coolant through on vise body and swivel base.
- Chip clearance holes ........ no dead pockets.
- Swivel handle allows the screw head revolved on machine table.
- The vice can be disassembled and repaired by regrinding.
- Supplied with Stopper for Fast Production.
