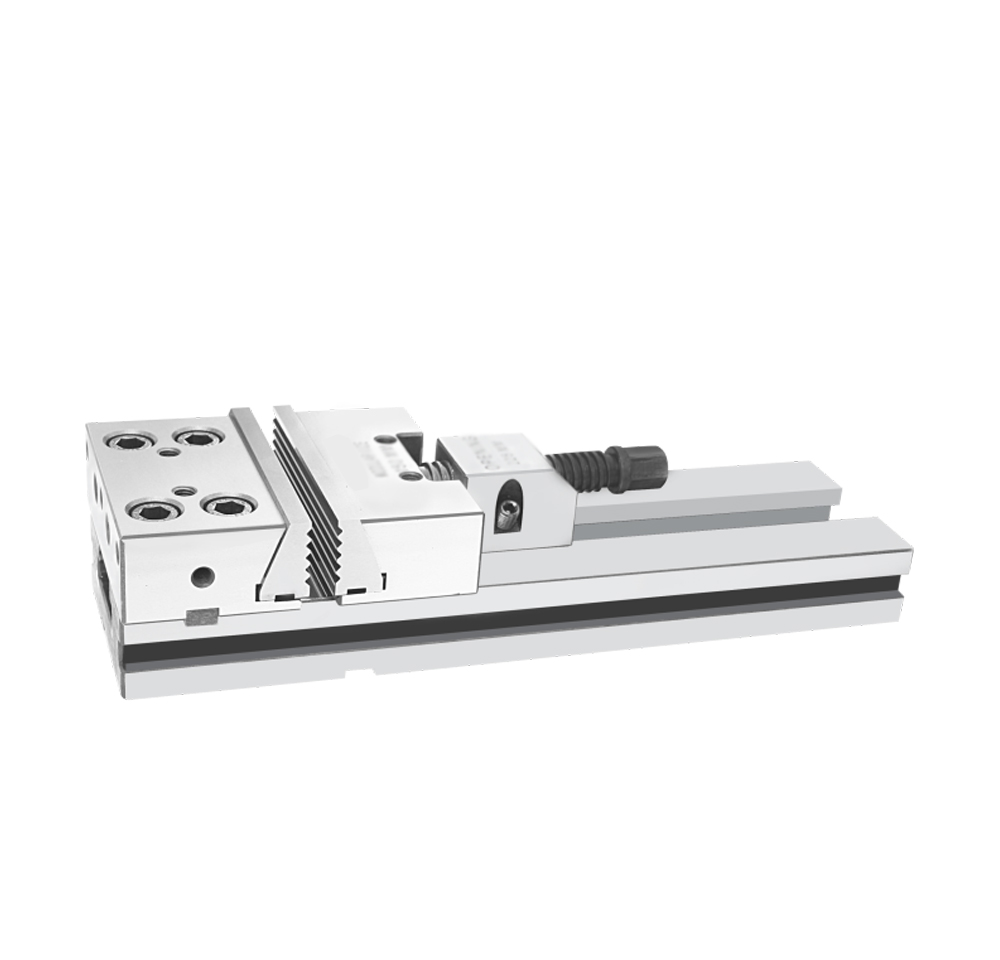

Modular Precision Machine Vice PJ
| Sizes in Inches | 4 | 6 | 8 | |
| A | Width of jaws in mm | 100 | 150 | 200 |
| B | Opening of jaws in mm | 130 | 200 | 300 |
| C | Depth of jaws in mm | 30 | 50 | 60 |
| D | Length overall in mm | 325 | 420 | 555 |
| E | Height overall in mm | 71 | 98 | 118 |
| F | Width Overall | 102 | 150 | 203 |
| Tenon slot Size in mm | 16 | 16 | 16 | |
| Weight (Approx) in kgs | 10 | 26 | 50 | |
- High Quality Alloy Steel
- Accuracy in Squareness 0.01/100 MM
- Case Hardened HRC 60 ±2 TO give maxiimum rigidity, high perfomance & no wear .
- Can be used multiple style.
- Both Jaws plates are in pull-down angle ,this ensures anti-lift clamping of the workpiece .
- Low Profile
- Supplied with stopper for fast Production.
