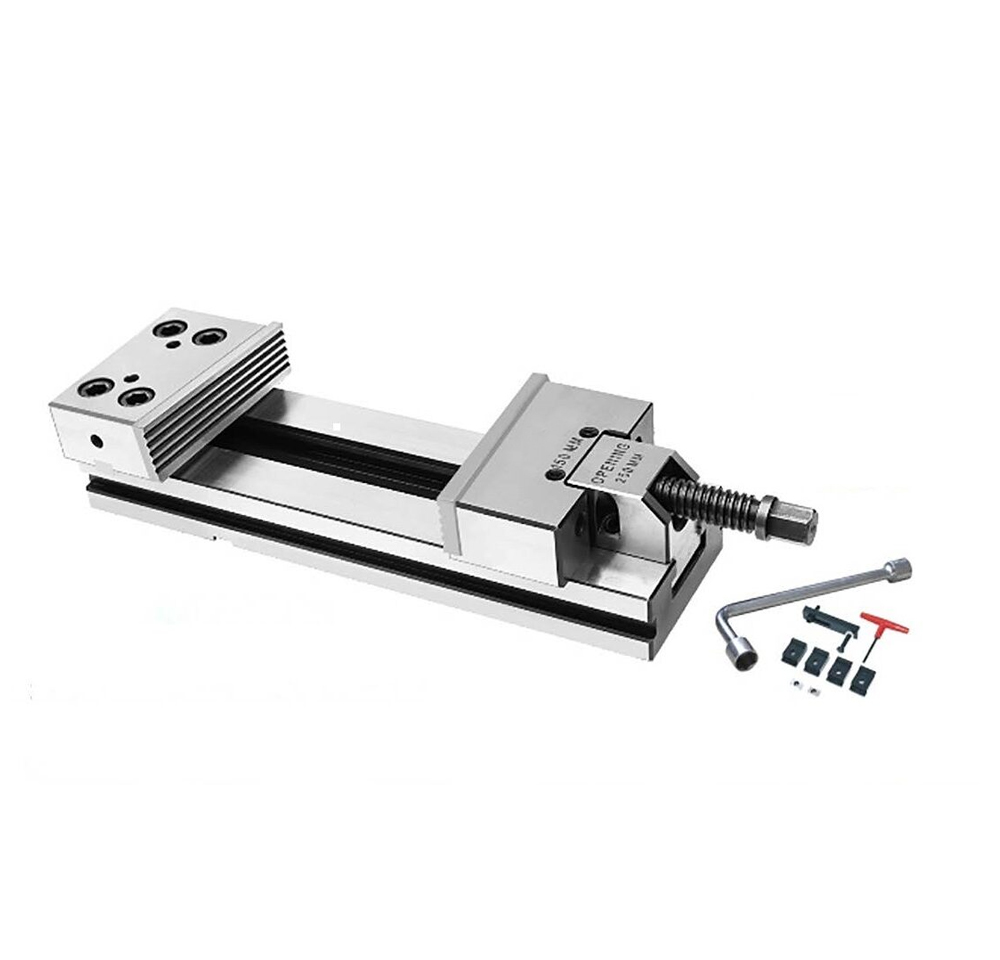

Modular Precision Machine Vice

Sizes in Inches 4 6 8
AWidth of jaws in mm100150200
BOpening of jaws in mm130200300
CDepth of jaws in mm305060
DLength overall in mm325420555
EHeight overall in mm7198118
FWidth Overall102150203
Tenon slot Size in mm161616
Weight (Approx) in kgs102650
  • High Quality Alloy Steel
  • Accuracy in Squareness 0.01/100 MM
  • Case Hardened HRC 60 ±2 TO give maxiimum rigidity, high perfomance & no wear .
  • Can be used multiple style.
  • Both Jaws plates are in pull-down angle ,this ensures anti-lift clamping of the workpiece .
  • Low Profile
  • Supplied with stopper for fast Production.
