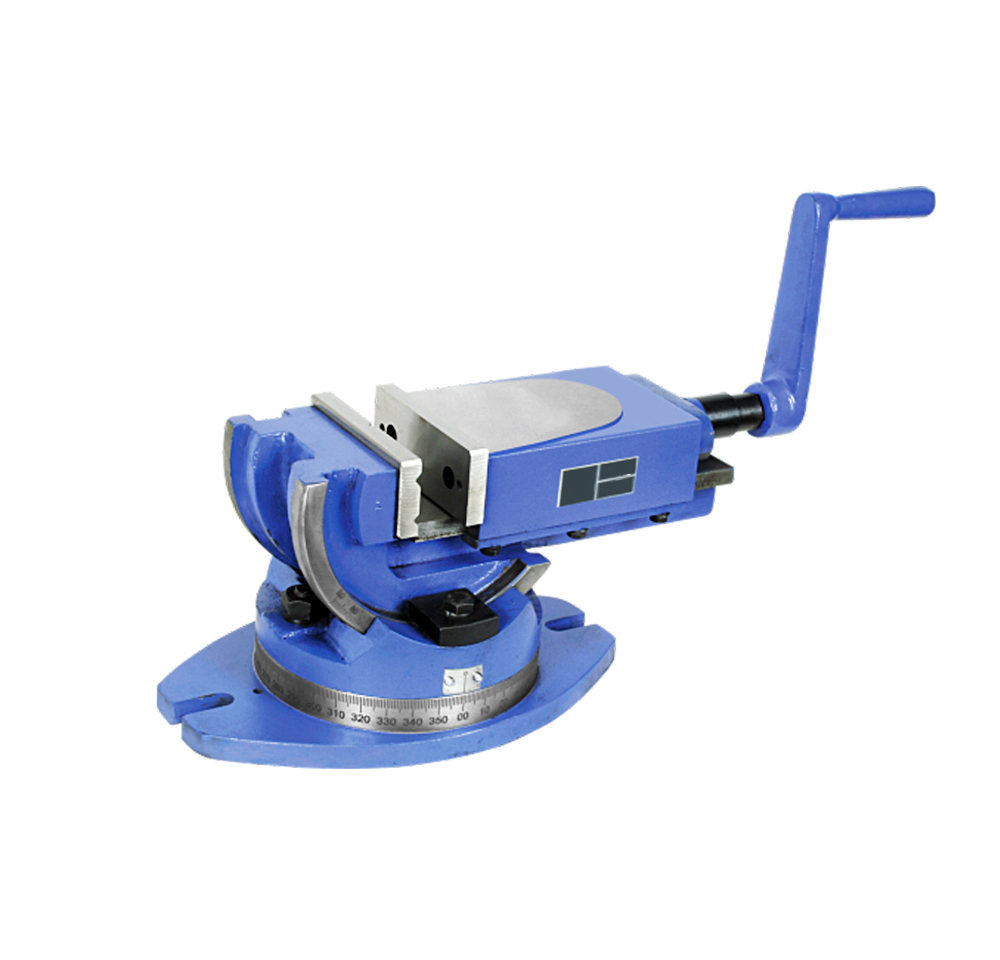

Tilting & Swivelling Vice
| Sizes in Inches | 2 | 3 | 4 | 5 | 6 | 8 | |
| A | Width of jaws in mm | 50 | 80 | 100 | 125 | 150 | 200 |
| B | Opening of jaws in mm | 50 | 75 | 100 | 125 | 150 | 200 |
| C | Depth of jaws in mm | 25 | 38 | 42 | 50 | 50 | 60 |
| D | Length overall in mm | 210 | 285 | 370 | 450 | 540 | 640 |
| E | Height overall in mm | 95 | 225 | 160 | 170 | 195 | 220 |
| G | Width overall in mm | 105 | 140 | 170 | 228 | 236 | 280 |
| Tenon Slot Size in mm | 16 | 16 | 16 | 20 | 20 | 20 | |
| Weight (Approx) in kgs. | 4 | 8.5 | 18 | 30 | 44 | 73 | |
- Fitted with Thrust Bearing for Smooth Movement.
- Positive locking to withstand heavy loads.
- Horizontal Swivel movement 360º.
- Vertical swivel movement 90º.
- Fine acme thread screw made out of special steel.
- Quick alignment to machine tables using a longitudinal slot.
- One vertical Two horizontal ‘V’ grooves are provided in hardened and ground jaws .
- Crank Handle is made of unbreakable steel provided with a spring loaded mechanism.
- Supplied with Stopper for Fast Production.
