Sizes in Inches |
3 |
4 |
5 |
6 |
Width of jaws in mm | 75 | 100 | 125 | 150 |
Opening of jaws in mm | 77 | 100 | 125 | 170 |
Depth of jaws in mm | 30 | 30 | 37 | 40 |
Height Overall | 60 | 60 | 64 | 75 |
Width Overall | 140 | 150 | 185 | 210 |
Length Overall | 230 | 285 | 360 | 420 |
Slot Size in mm | 12 | 12 | 14 | 14 |
Jaw Slot in mm | 7 | 7 | 7 | 7 |
Weight (Approx) in kgs. | 3 | 4 | 6 | 8 |

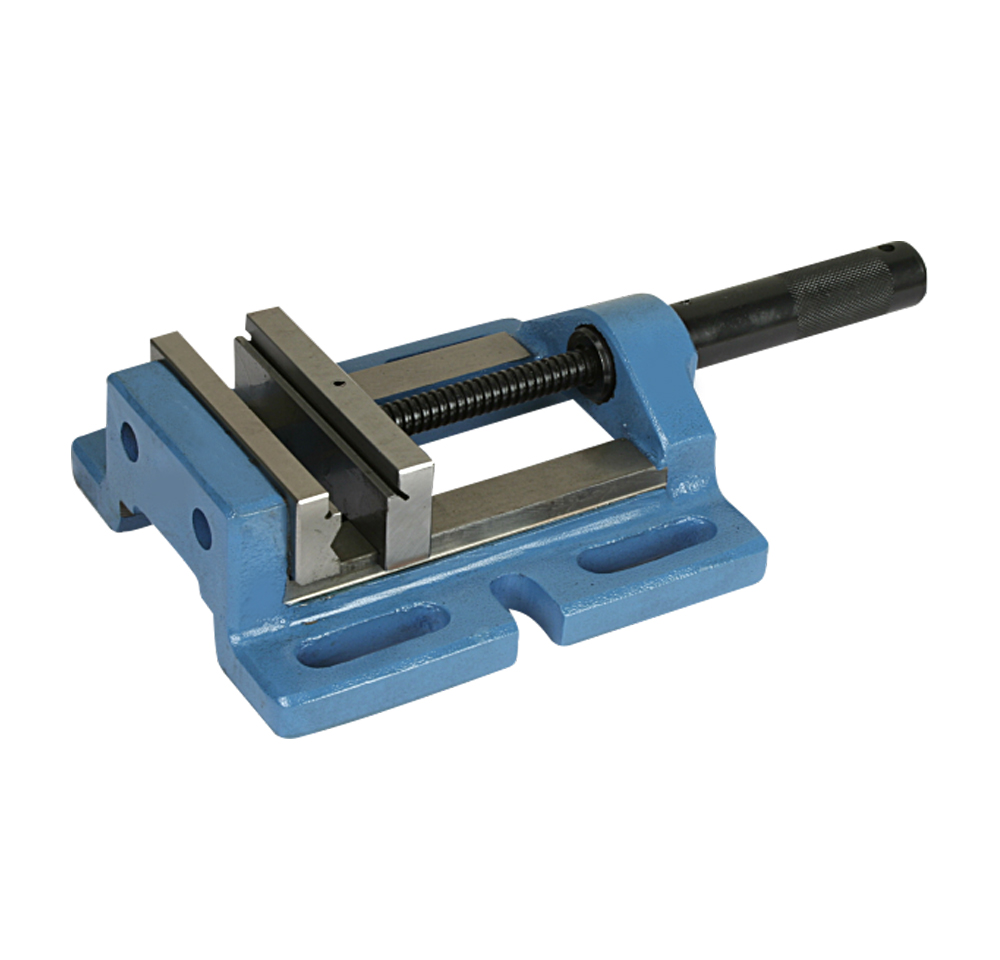

- Precision Unigrip Vice , Small , compact and indispensable vice with steel jaws.
- On the face of which are grooved horizontal and vertical notches for holding, round, square, thin & irregular work for drilling & light milling.
- Vices are equipped with a convenient unigrip mechanism.
- Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from table edge. This feature increase the scope of application of the range of vices.
